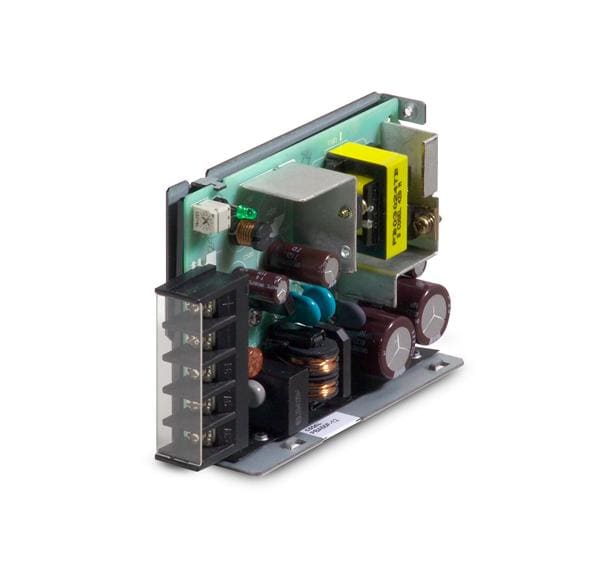

Cosel PBA30F-9-CN ອຸປະກອນຈຳໜ່າຍພະລັງງານປ່ຽນແປງ 30W 9V 3.4A ມີການຄຸ້ມຄອງແລະປົກຄຸມ

Width: 78.74 mm (3.1 in)

Height: 30.48 mm (1.2 in)

Length: 104.14 mm (4.1 in)

Industry: Industrial

Efficiency: 77 %

Unit Weight: 270 g

Output Power: 30.6 W

Input Voltage: 85 VAC to 264 VAC, 110 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 30 W

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 110 VDC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.4 A

Output Voltage-Channel 1: 9 VDC

Operating Temperature Range: - 10 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 10 C
