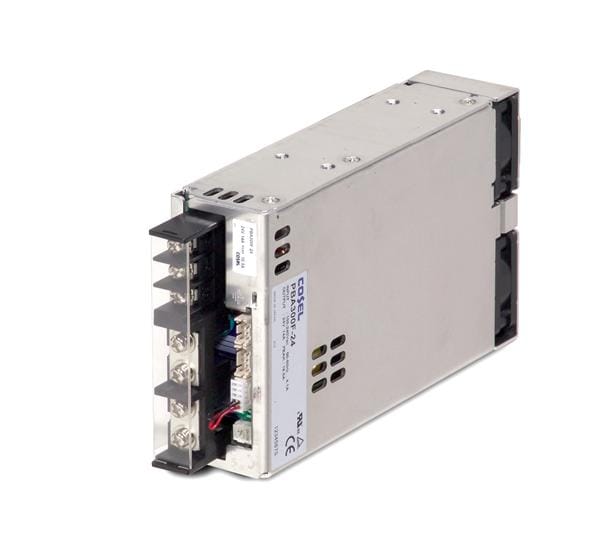

Cosel PBA300F-15-CN1 ອຸປະກອນຈຳລອງພະລັງງານປ່ຽນແປງ 300W 15V 22A ແຖບ DIN

Width: 101.6 mm (4 in)

Height: 43.18 mm (1.7 in)

Length: 170.18 mm (6.7 in)

Industry: Industrial

Efficiency: 81 %

Unit Weight: 1 kg

Output Power: 330 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC

Cooling Method: Air-Cooled

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 300 W

Input Voltage - Max: 264 VAC, 350 VDC

Input Voltage - Min: 85 VAC, 120 VDC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 22 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: - 10 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 10 C
