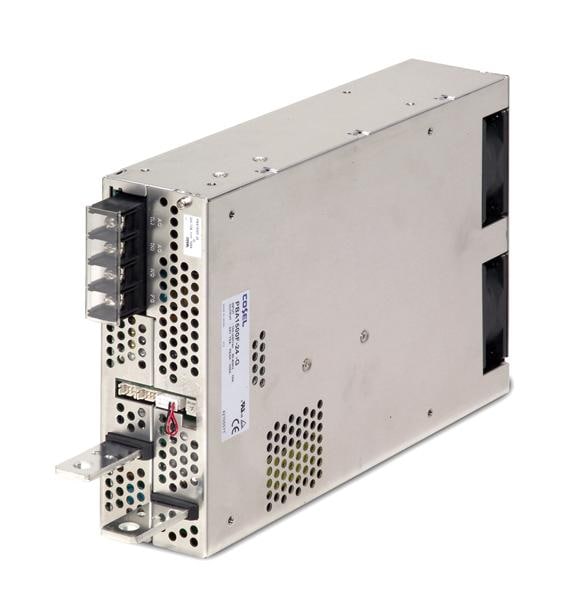

Cosel PBA1500F-7R5-CF4 Switching Power Supplies 1500W 7.5V 200A Low Speed Fan

Width: 177.8 mm (7 in)

Height: 60.96 mm (2.4 in)

Length: 269.24 mm (10.6 in)

Industry: Industrial

Efficiency: 83 %

Unit Weight: 3.4 kg

Output Power: 1.5 kW

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC

Cooling Method: Air-Cooled

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 1.5 kW

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 120 VDC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 200 A

Output Voltage-Channel 1: 7.5 VDC

Operating Temperature Range: - 20 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 20 C
