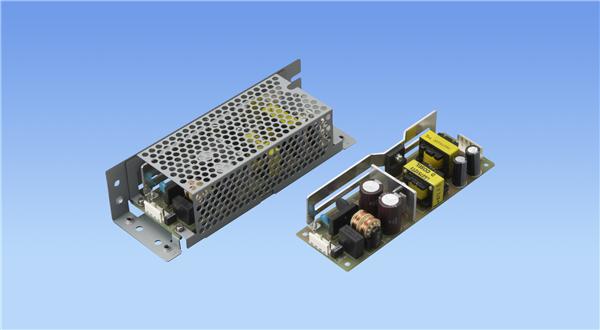

Cosel LGA75A-12-J1Y ແປງພະລັງງານສະຫຼຸບກຳລັງ 75W 12V 6.3A VH(J.S.T.) ປະເພດການເຊື່ອມຕໍ່

Width: 48.26 mm (1.9 in)

Height: 35.56 mm (1.4 in)

Length: 149.86 mm (5.9 in)

Efficiency: 83 %

Unit Weight: 200 g

Output Power: 75.6 W

Input Voltage: 85 VAC to 132 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 2 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 132 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.3 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
