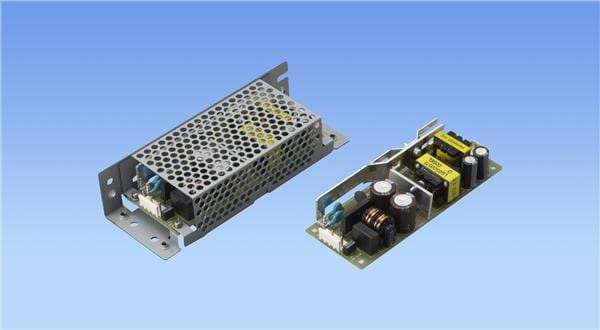

Cosel LGA50A-24 ອຸປະກອນຈົດສະຫຼຸບພະລັງງານ 50W 24V 2.5A AC-DC Power Supply

Width: 48.26 mm (1.9 in)

Height: 27.94 mm (1.1 in)

Length: 132.08 mm (5.2 in)

Industry: Industrial

Efficiency: 85 %

Unit Weight: 160 g

Output Power: 60 W

Input Voltage: 85 VAC to 132 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 2 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 132 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.5 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
