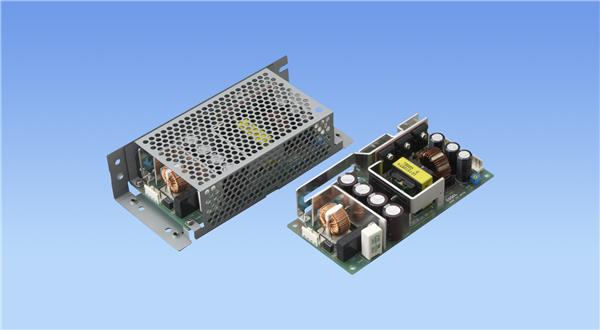

Cosel LGA150A-12-C ເພາະພະລັງງານສະຫນັບສະຫນູນປ່ຽນແປງ 150W 12V 12.5A ມີການຄຸ້ມຄອງ

Width: 73.66 mm (2.9 in)

Height: 38.1 mm (1.5 in)

Length: 160.02 mm (6.3 in)

Efficiency: 84.5 %

Unit Weight: 420 g

Output Power: 150 W

Input Voltage: 85 VAC to 132 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 2 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 132 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
