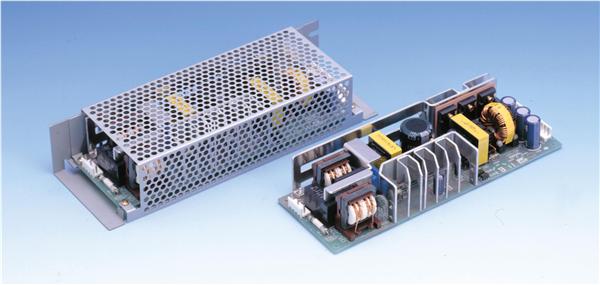

Cosel LEA150F-12-SN ອຸປະກອນຈົດສະຫຼຸບ AC/DC PS

Width: 3.4 in

Height: 2 in

Length: 9.9 in

Industry: Industrial

Efficiency: 81 %

Unit Weight: 500 g

Output Power: 150 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 150 W

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 120 VDC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
