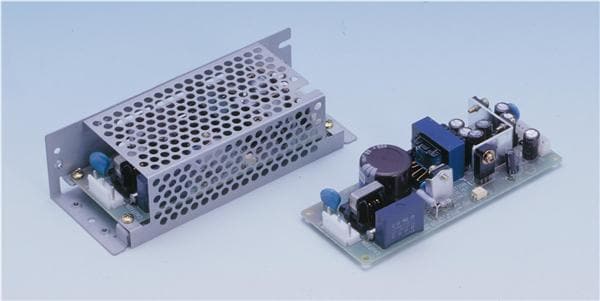

Cosel LDC15F-2-SN ອຸປະກອນຈົດສະຫຼຸບ AC/DC PS

Width: 55.88 mm (2.2 in)

Height: 38.1 mm (1.5 in)

Length: 147.32 mm (5.8 in)

Industry: Industrial

Efficiency: 70 %

Unit Weight: 254.016 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC, 110 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 3 Output

Power - Convection: 15 W

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 110 VDC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2 A

Output Current-Channel 2: 300 mA

Output Current-Channel 3: 200 mA

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 15 VDC

Output Voltage-Channel 3: - 15 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
