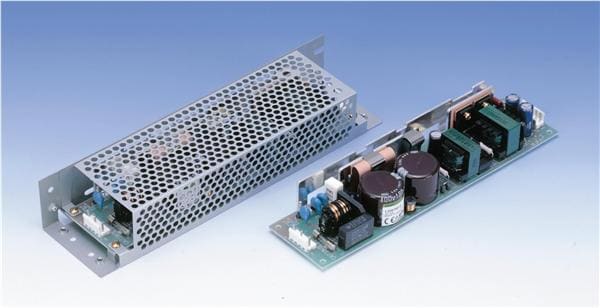

Cosel LDA75F-24-R ອຸປະກອນຈົດຈໍາໄຟ AC/DC PS(ເຟີມເຟີມເປີນ)

Width: 55.88 mm (2.2 in)

Height: 33.02 mm (1.3 in)

Length: 220.98 mm (8.7 in)

Industry: Industrial

Efficiency: 82 %

Unit Weight: 320 g

Output Power: 76.8 W

Input Voltage: 85 VAC to 264 VAC, 110 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 110 VDC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.2 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
