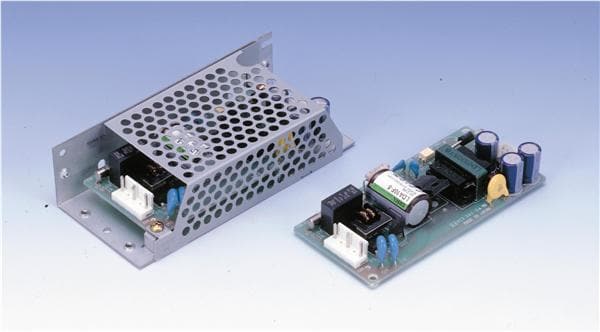

Cosel LDA10F-5-SNY ອຸປະກອນຈຳຫນ່າຍພະລັງງານສະຫວ່າງ AC/DC PS(ກະຕ່າງເປີດ)

Width: 48.26 mm (1.9 in)

Height: 20.32 mm (0.8 in)

Length: 104.14 mm (4.1 in)

Industry: Industrial

Efficiency: 72 %

Unit Weight: 186 g

Output Power: 10 W

Input Voltage: 85 VAC to 264 VAC, 110 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 110 VDC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
