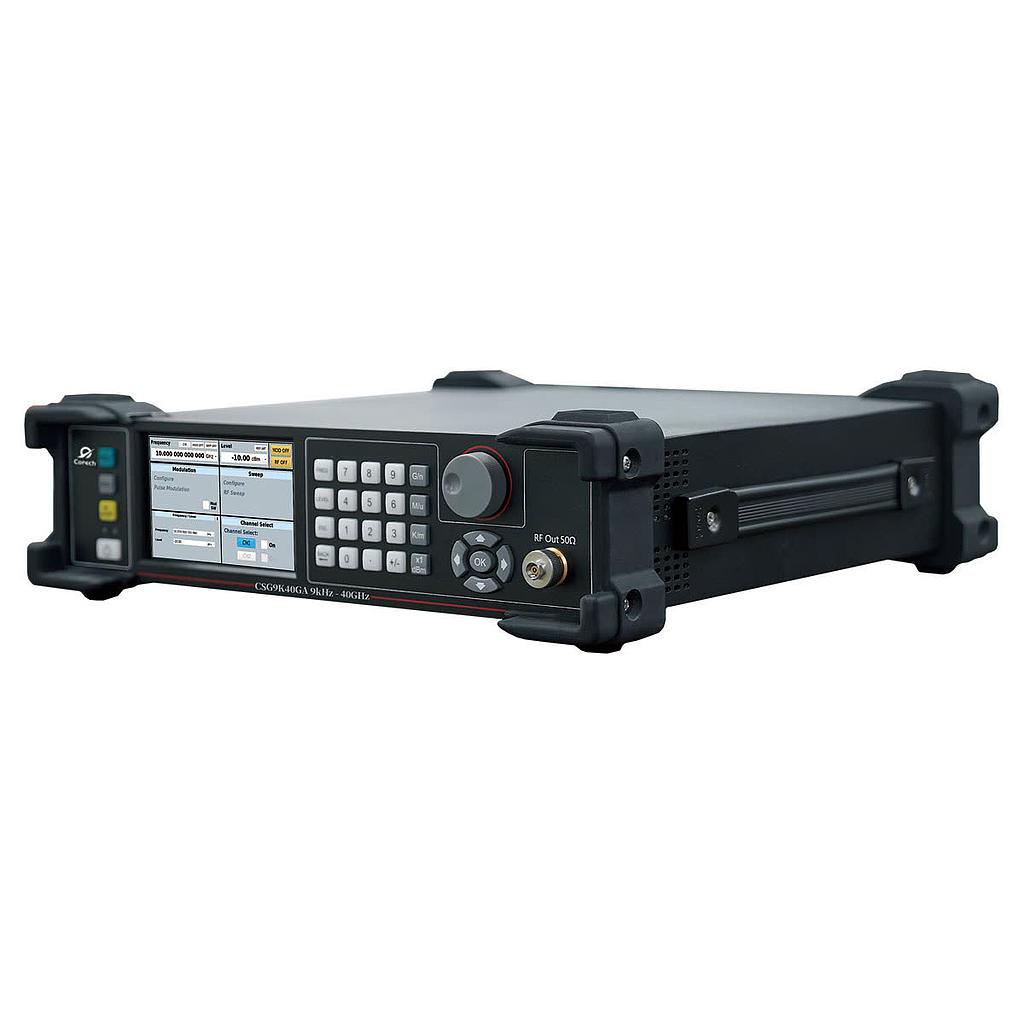

Corech CSG9K40GA ເຄື່ອງສ້າງສັນຍານສຽງລົບກວນຂະໜາດນ້ອຍ (9kHz - 40GHz)
Frequency Range: 9kHz~40GHz
Frequency Resolution: 0.001Hz
Operating Mode: CW / Sweep
Base Clock:
+ Internal Reference Aging Rate: ±0.3ppm / year
+ Initial Calibration Accuracy: ±0.1ppm
External Reference（50Ω）:
+ Input Frequency: 10MHz
+ Input Power: +3dBm (Min.); +5dBm (Typ.); +10dBm (Max.)
+ Lock Range: ±0.5ppm
+ Wave: Sine / Square
Internal Reference:
+ Output Frequency: 10MHz, 100MHz
+ Output Frequency Stability: ±0.1ppm
Switching Speed:
+ Sweep: 10ms
Pulse: 50ns/120ns
Output Power:
40 GHz: -120dBm ~ +17dBm
Harmonics:
20 GHz: -45dBc (Typ.); -40dBc (Max.)
Spurious (≥5KHz):
30 GHz: -74dBc (Typ.); -65dBc (Max.)
Pulse Modulation:
+ Min. Pulse Width: 100ns
+ Min. Period: 110ns
External Pulse Input:
+ LVTTL: +3.3V
+ Internal Pulse Generator:
+ Square Wave Speed Rate: 0.1Hz~10MHz
+ Period: 110ns~100s
+ Pulse Width: 100ns~99.999 999s
Sweep:
+ Operating Mode: Step Sweep
+ Sweep Range: 9kHz~40GHz
General Specifications:
+ Power Requirements: AC110V / AC240V
+ Operating Temperature: 0 ℃~+50 ℃
+ Weight: 10kg
+ Dimensions: 360 × 360 × 89mm
