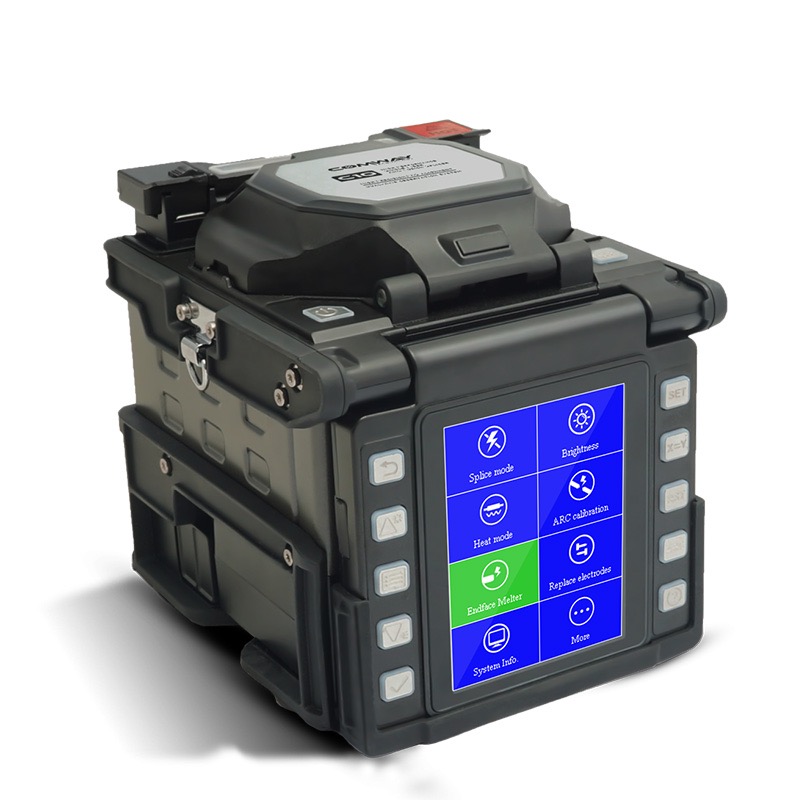

Comway C10 Fusion Splicer (Splicing Time 5~10s)
Size & Weight: D156×W135×H149(mm), 2.0kg (2.5kg with battery)
Fiber Alignment: 6 motors core alignment
Fiber Type: SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice Mode: Single fiber
Fiber Diameter: Cladding diameter 80~150µm, coating 100~3000µm
Cleave Length: 250µm cladding diameter 816mm, over 250µm cladding diameter 16mm
Splicing Programs: Max. 200
Splicing Time: 5 sec. [SM Fast] program, 10 sec. [SM G652] program
Heating Programs: Max. 30
Heating Time: Adjustable, 8 sec. typical
Splice Protector: 10~60mm
Splice Image Capture: Max. 800
Splice Data Storage: Max. 20000
Splice Loss: SM: 0.01dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB, EB: 0.02dB
Return Loss: >>60dB
Loss Estimation: Provided
Operation Condition: Altitude 0~6000m, Humidity 0~95%, Temperature -20~+50°C, Wind velocity up to 15m/s
Storage Condition: Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C)
Tension: 1.96~2.25N
Fiber View: Two 380x cameras observation, 4.3 inch high-light color screen
Fiber Magnification: 760x for X or Y single axis view, 380x for both X&Y dual axis view
Port: High speed USB
Electrode Life: 6000 arc discharges
Power Supply: AC 100-240V, 50/60Hz
Battery Parameters: 8400mAh High capacity battery, more than 500 times splicing and heating
