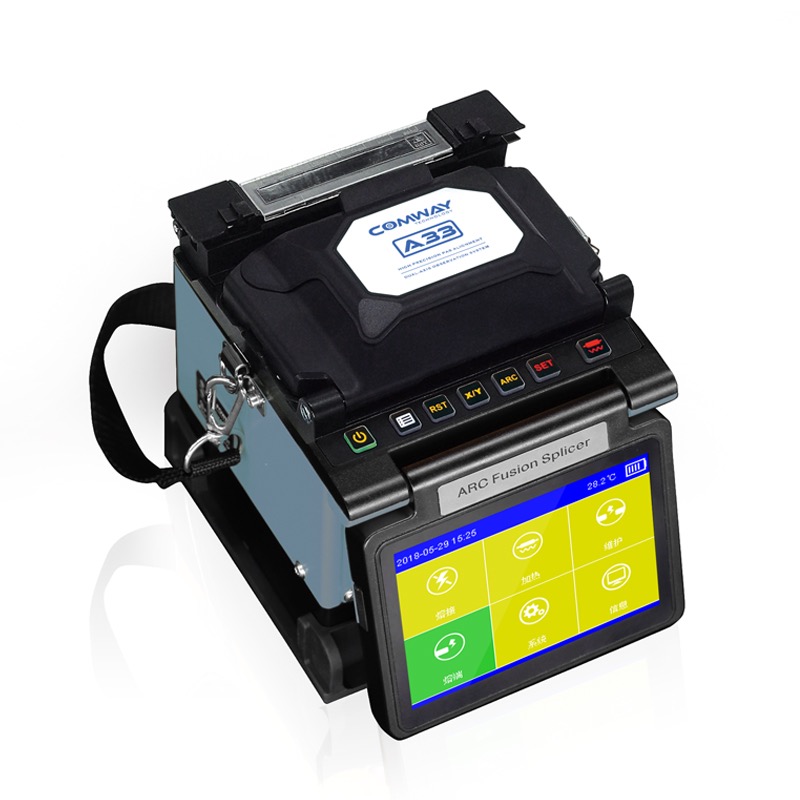

Comway A33 Fusion Splicer (Splicing Time 5~15s)
Size & Weight: D136×W141×H136(mm), 1.5kg (1.8kg with battery)
Fiber Alignment: High Precision PAS Alignment
Fiber Type: SM(ITU-T G.652), MM(ITU-T G.651), DS (ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice Mode: Single fiber
Fiber Diameter: Cladding diameter 80-150µm, coating diameter 100~3000µm
Cleave Length: 250µm cladding diameter 8-16mm, over 250µm cladding diameter 16mm
Splicing Programs: Max. 100
Splicing Time: 5 sec. [SM Fast] program, 15 sec. [SM G652] program
Heating Programs: Max. 30
Heating Time: Typical 15 sec. (Adjustable)
Splice Protector: 10~60mm
Splice Image Capture: Max. 300, Automatic cycle storage
Splice Data Storage: Max. 20000
Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB
Return Loss: >>60dB
Loss Estimation: Provided
Operation Condition: Altitude 0-5000m, Humidity 0~95%, Temperature -10~+50°C, Wind velocity up to 15m/s
Storage Condition: Humidity 0-95%, Temperature -40~+80°C (Battery -20~+40°C)
Tension: 2N
Fiber View: 4.3 inch high-light color touch screen
Fiber Magnification: 300x for X or Y single axis view, 500x for both X&Y dual axis view (zoom up)
Port: High speed USB
Electrodes Life: 5000 ARC discharges
Power Supply: AC 100-240V, 50/60Hz
Battery Parameters: 4000mAh High capacity battery, more than 240 times splicing and heating
