Measured value: Temperature, Relative humidity, Two-state signal
Temperature sensor:
Measuring range: -55 to +105 °C
Accuracy: according to the connected probe DSxx
Resolution: 0.1 °C
Humidity sensor:
Measuring range: according to the connected probe DSxx
Accuracy: according to the connected probe DSxx
Resolution: 0.1% RH
Flood detector:
Usage Intended: for indoor usage only
Cable length: 2.5 meters (can`t be extended)
Two wire connection: red wire – active, black wire – GND, directly powered from P8653
Binary input:
Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“: > 2,5 V;
Internal resistivity of the voltage source: < 2kOhm
Input voltage range: 0 to +30 V
Parameters of the voltage-free contact: Voltage on the unclosed contact: 3,3 V
Current through closed contact: 0,1 mA
Maximum resistivity of the contact: < 5kOhm
Operating temperature: -20 to +60 °C
Channels: 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output: Ethernet
Measuring interval: 2 s
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail, SNMP Trap, Syslog
Power: Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class: IP30
Dimensions: 88 x 74 x 39,5 mm
Weight: approx. 125 g
Included in delivery:

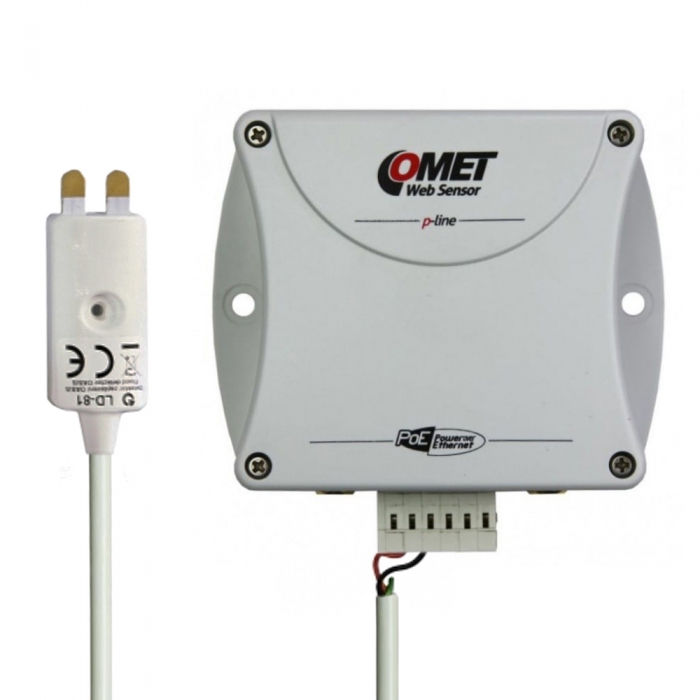

P8653
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
COMET Cloud for 3 Months
Flood detector LD-81
EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY
