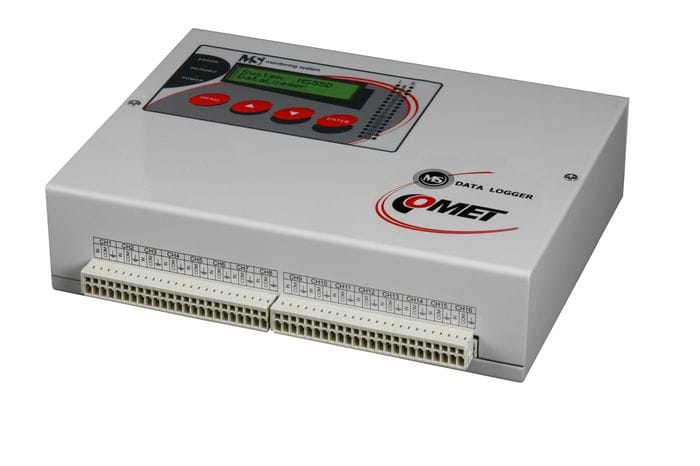

Comet MS55D ຕົວບັນທຶກຂໍ້ມູນສິບຫົກຊ່ອງທີ່ມີສັນຍານເຕືອນ (9 to 30Vdc)

Measured value: Temperature, Relative humidity, Counted values (dew point…), Current, Voltage, Two-state signal, Frequency, Resistance, Event logging

Operating temperature: 0 to +50 °C

Channels: 1 to 16 hardware modules

Memory: 2MB (up to 480 000 values)

Memory type: internal SRAM, backed-up by Lithium battery

Recording interval: adjustable individually for all input channels from 1 second to 24 hours

Recording interval: noncyclic - data logging stops after filling the memory

cyclic - after filling memory oldest data is overwritten by new

Real time clock: year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Resolution of the AD converter (analog channels): 16 bits, conversion duration approximately 60ms/channel

Communication speed: 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)

Communication protocol: www, XML, SNMP, SOAP, ModbusTCP

Alarm protocols: email, SNMP trap, Syslog

Power: 9 to 30Vdc, 24Vdc recommended

Protection class: IP20

Dimensions (including connectors): 215 x 225 x 60 mm

Weight: approx. 800 g

Included in delivery:

MS55D

Instruction Manual

Traceable Calibration Certificate

USB Cable

COMET Cloud for 3 Months (if the optional Ethernet communication is connected)

Ethernet interface

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Configurable inputs and outputs.

Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.
