Measured value: Temperature, Relative humidity, Counted values (dew point…), Atmospheric pressure, Two-state signal
Temperature sensor:
Measuring range: -30 to +105 °C
Accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity:
Measuring range: 0 to 100 % RH
Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
Dew point:
Measuring range: -60 to +80 °C
Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution: 0.1 °C
Atmosphere pressure sensor:
Measuring range: 600 to 1100 hPa
Accuracy: ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution: 0.1 hPa
Relay outputs:
Quantity: 2
Maximal voltage: 50 V
Maximal current: 2 A
Maximal power: 60 VA
Binary outputs:
Quantity: 3
Signal for binary input: dry contact, open collector or two-state voltage signal. Inputs are not galvanically isolated.
Minimum pulse duration on binary input: 500 ms
Voltage across open contact: < 3.3 V
Low voltage level: 0 to +0.5 V
High voltage level: +3.0 to +30 V
Operating temperature: -30 to +80 °C
Channels: 1x connectable temperature+humidity probe
Acoustic alarm: from built-in beeper - switchable
Counted values: humidex, dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output: Ethernet
Measuring interval: 2 s
Range of humidity sensor temperature compensation: all temperature range
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power: 9-30 Vdc
Protection class: IP40
Dimensions: 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length: 1 meter
Weight: approx. 410 g
Included in delivery:

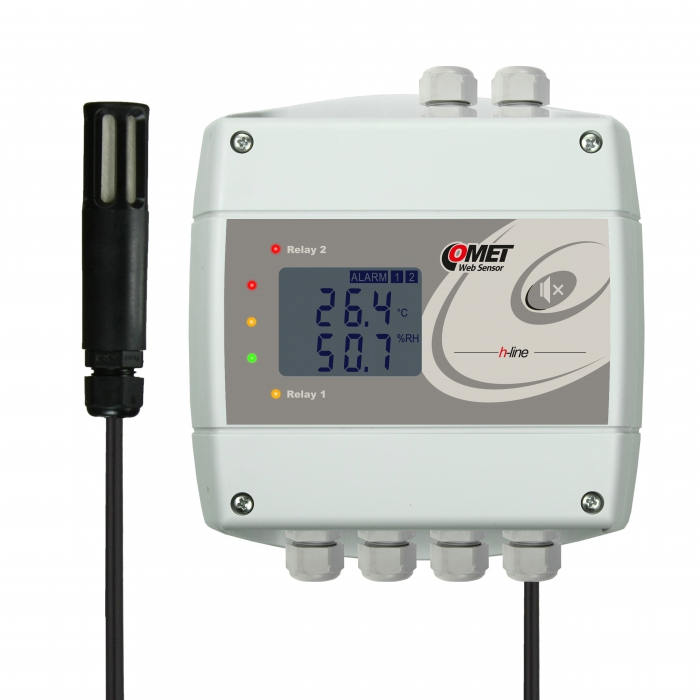

H3531
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
COMET Cloud for 3 Months
