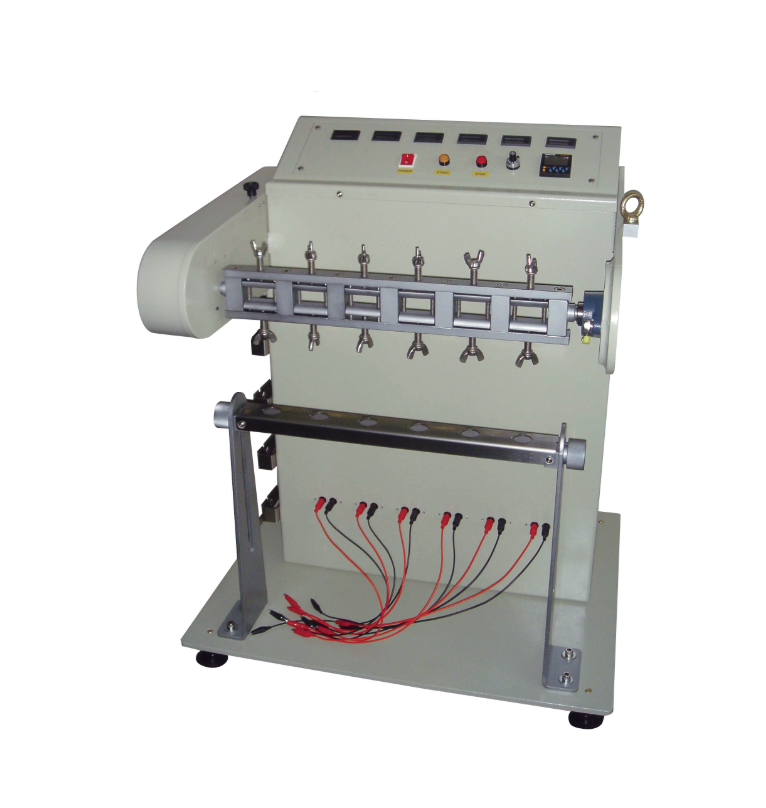

Cometech QC-659A ເຄື່ອງທົດສອບປລັກ/ສາຍໄຟ
Jigs: 6 sets
Swing angle: ±30°、±45°、±60°、±75°、±90° (adjustable).
With angle indicator to identify the bending angle.
Speed: DC motor, setting 20 ~ 60CPM is available.
Counter: 7 sets
When a single wire break, the counter which belongs to the breaking wire will stop counting. Shut down is controlled by master counter or automatically stop when six sets specimens break.
Weights: 100、200、300、500g each per 6 pcs
Attach with weights shelf for put convenience.
Dimension: 78×65×95 cm
Weight: 100 kg
Others:
1.With 6 Sets of terminal-plug and Alligator-clip for easy to connect.
2.The length of specimen could be adjustable, and machine is equipped with limitation block to prevent specimen crash each other.
3.The R angle of grip at two ends: 10mm and 5mm, changeable.
4.The grip span can be custom-made according to wire head size.
5.Single counter Built-in battery can be used for about 5 years
