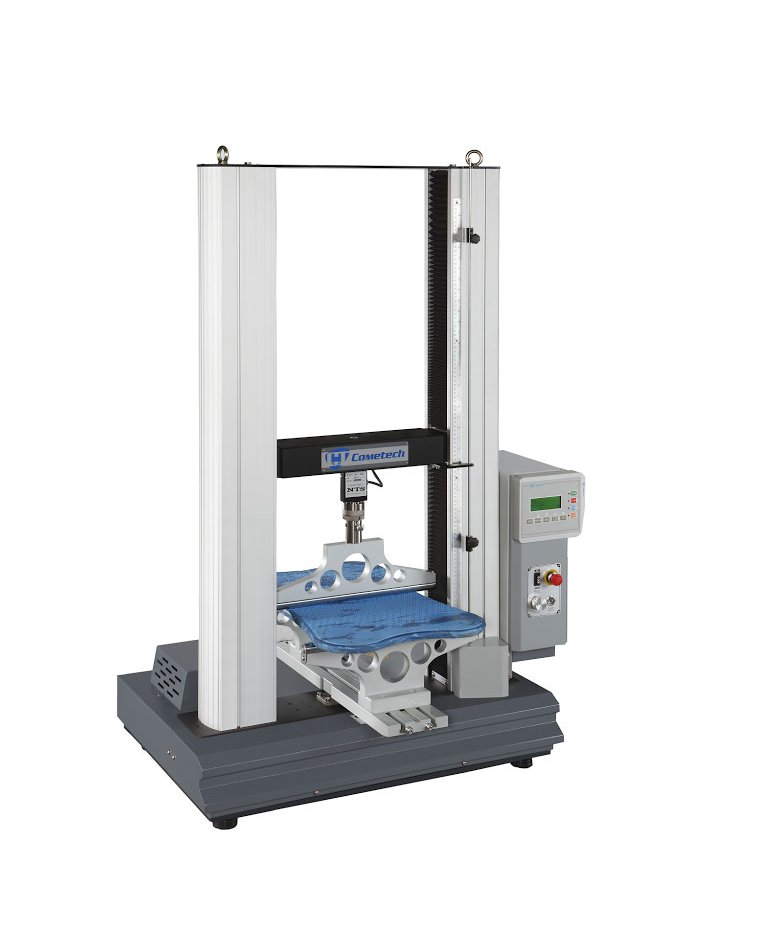

Cometech QC-506M1F ເຄື່ອງທົດສອບ Tensile ຄອມພິວເຕີ (ການບີບອັດ). (20kN, 800 mm)
Max. Capacity: 20kN
Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution: 31 bits
Force Precision: 1/100,000
Test stroke: 800 mm (w/o grip)
Stroke resolution: 0.0001 mm
Space between columns: 425 mm (550mm, 680mm, 800mm for optional)
Speed range: 0.2 ~ 830 mm/min (Can be set by computer digital)
PC-Port:RJ45(TCP/IP) [software optional]
Data sampling rate:400Hz (Max.)
Hardware safety protection: upper limit, lower limit, emergency stop
Motor type: Servo Motor
Stiffness Slop:1484 kgf/mm
Power Supply:Single phase 200 ~ 240VAC，5A
Dimension: 95× 58 × 151 cm
Weight: 145 kg
Option:
- Display panel: EM2FTP-001
- Software: SM1F0-04
- Long extensometerQC-557
- Grips (nessesary)
- Loadcell. If want to test under 10% Max. Capacity
