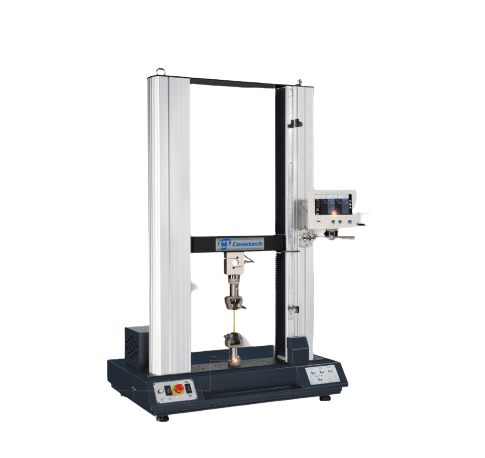

Cometech QC-506D2 extended ເຄື່ອງທົດສອບແຮງດັນ (20kN)

Maximum force: 20kN

Measuring units:

- Force: gf, kgf, lbf, N, kN, ozf, tonf (SI), ton (long), tonf (short);

- Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution: 23 bits

Force accuracy: 1 / 10,000

Measuring stroke: 1200 mm

Stroke resolution: 0.001mm

Distance between two columns: 425 mm (550mm, 680mm, 800mm optional)

Speed ​​range: 25 ~ 650 mm / min adjustable (Digital switch)

PC connection port: TCP / IP (software connection optional)

Speed ​​reaches 1000kg: Above 25mm / min

Speed ​​reaches 2000kg: Over 45mm / min

Sampling rate: 1200Hz max

Hardware safety protection: up / down limit, emergency stop button

Motor type: DC motor

Chassis hardness: 1484 kgf / mm

Power source: single phase 100 / 220VAC, 5A

Dimensions: 86x60x 195 cm

Weight: 190kg
