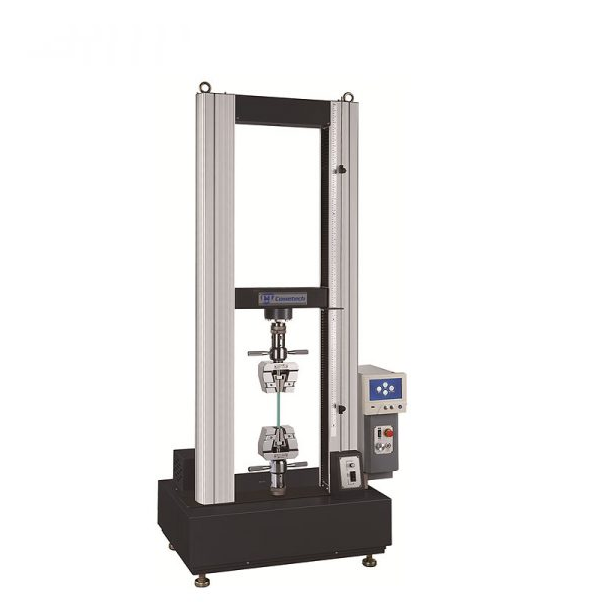

Cometech QC-505D1 ເຄື່ອງທົດສອບວັດສະດຸສາກົນ (50kN)
Max. Capacity: 50kN
Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Precision: 1/10,000
Force Resolution: 23 bits
Test stroke: 1100 mm (w/o grip)
Stroke resolution: 0.0025mm
Space between columns: 425 mm (550mm, 680mm, 800mm optional)
Speed range: 25~650 mm/min adjustable(By digital DIP switch)
Speed accuracy: ±10%
PC-Port: TCP/IP(Connect software optional)
Data sampling rate:1200Hz (Max.)
Hardware safety protection: upper limit, lower limit, emergency stop
Motor type: DC Motor
Stiffness Slop:5310kgf/mm
Transmission: Timing belt, ball screw which can significantly reduce the noise and transmission losses, increase the transmission efficiency.
Power Supply:Single phase 110 / 220 VAC, 5A
Dimension: 90 x 60 x 200 cm
Weight: 360kgf
