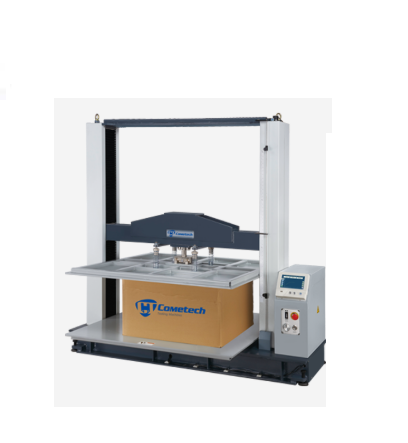

Cometech QC-121D1 ເຄື່ອງທົດສອບການບີບອັດ Carton

Model QC-121D1 ngừng sản xuất và thay thế bằng model QC-121D2. Thông số tương đương nhau:

Model: QC-121D1 (A type)/QC-121D1 (B type)/QC-121D1 (C type)/QC-121D1 (D type)

Test space: 100×100×90 cm(A type)/120×120×100 cm(B type)/100×100×90 cm(C type)/120×120×100 cm(D type)

Max.capacity:2000 kg(A type)/2000 kg(B type)/5000 kg(C type)/5000 kg(D type)

Units exchange: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution: 23 bits

Force precision: 1/10,000

Stroke resolution:0.00125mm

Speed range: 10 ~ 200mm/min（digital DIP Switch）

PC-port: TCP/IP

Data sample rate: 1200hz(Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor Type: DC motor

Dimension: 159×100×170cm(A type)/179×120×176 cm(B type)/159×100×170 cm(C type)/179×120×176 cm(D type)

Weight: 800 kg(A type)/900 kg(B type)/850 kg(C type)/950 kg(D type)
