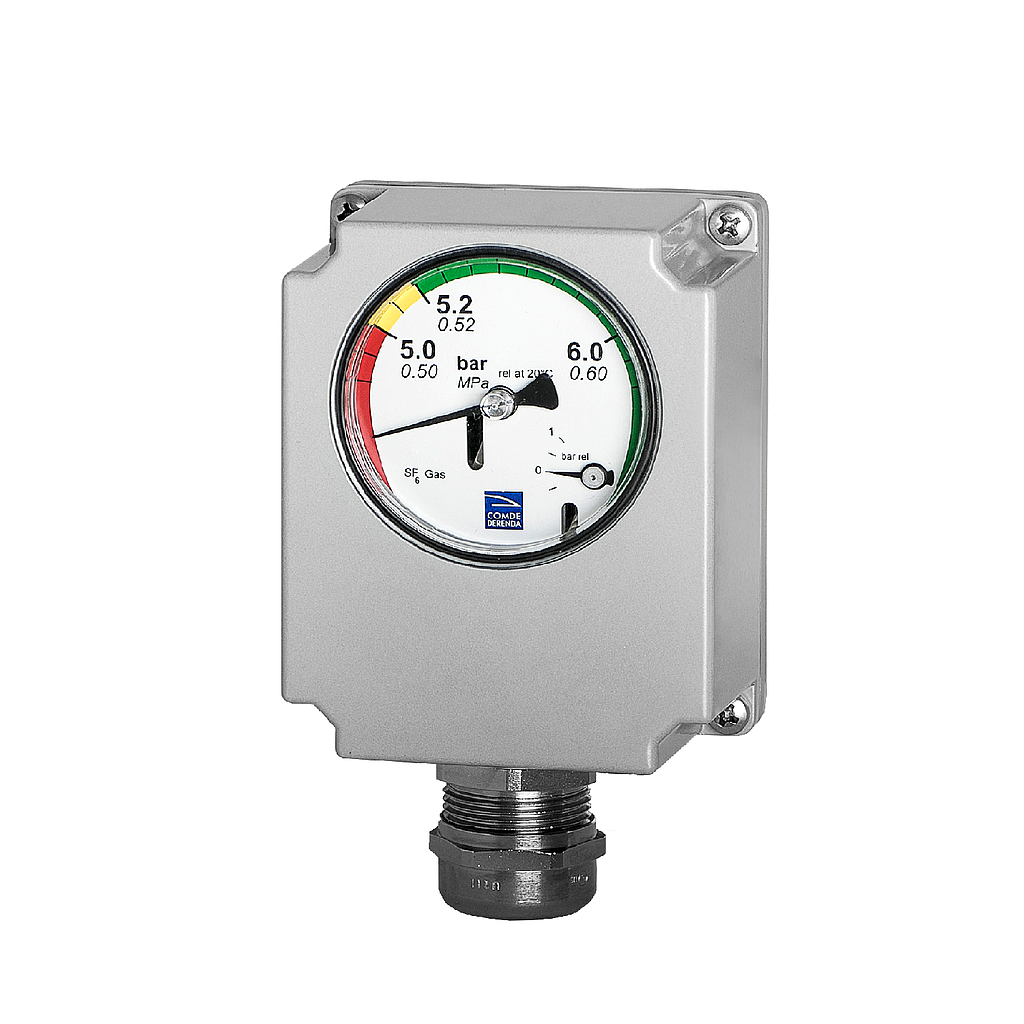

Indicator: Analog indicator Ø 55 mm
Connector: Phoenix Combicon or PTR terminal clamp
Cable gland: M25 x 1.5 EMC
Cable gland: M16 x 1.5
Microswitches: 3 (max. 2.5 mm² IAW IEC 60947)
Protection: IP 67 / IP X5 IAW IEC 60529
Vibration stability: > 4 g (20 … 80 Hz), 0.05 bar from switching point
Pressure range: 0 … 10 bar rel. / 0 … 145 psi rel.
Hysteresis: < 0.1 bar / 1.5 psi (typ.)
Indicator tolerance at 20 °C: ± 0.1 bar / 1.5 psi
Switching accuracy: ± 0.08 bar / 1.2 psi
Response threshold: ± 0.05 bar / 0.7 psi
Reference chamber leakage rate: < 0.005 bar/year (5 * 10-9 mbar * l * s-1)
Electric strength: 2 kV (50/60 Hz) to ground
Rated surge voltage: 5 kV (1.2/50 μs) to ground IAW IEC 61000-4-5
Resistive load (inductive load):
AC 250 V, 10 (2) A
DC 250 V, 0.2 (0.2) A
DC 220 V, 0.25 (0.2) A
DC 125 V, 0.4 (0.25) A
DC 110 V, 0.5 (0.3) A
DC 60 V, 1.5 (0.4) A
DC 48 V, 1.9 (0.7) A
DC 24 V, 3.0 (2) A
Operating temperature: –40 … +70 °C / –40 … +158 °F
Storage temperature: –60 … +80 °C / –76 … +176 °F
Weight: 630 g
Material pressure connection: AISi1MgMn, anodized
Material housing and connection box: AISi12, powder coated RAL 9006
Material reference gas bellows system: Stainless steel 1.4541 (bellows) / 1.4301 (bellows housing)
Material indicator window: Plexiglas molding compound 8N
Material type plate, resistant to UV, ozone, climate, chemicals, and solvents: 3M Scotchcal foil 3690
