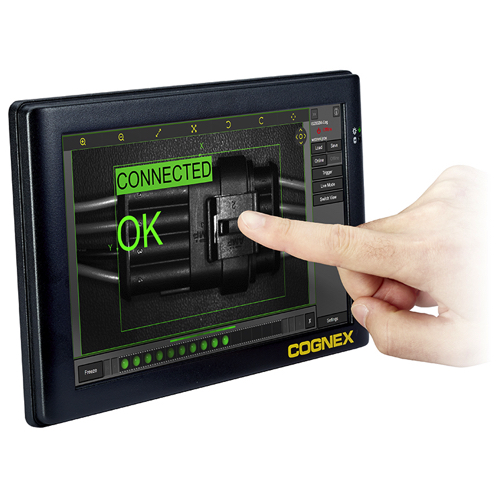

Cognex VisionView Web Panel Vision View ເວັບ (1024 x 600 (614,400 pixels))
Size: WVGA 9 in / 229 mm (aspect ratio 10:6)
Type: TFT LCD
Resolution: 1024 x 600 (614,400 pixels)
Number of colors: 262,144 (18 bits/pixel)
Brightness: 300 nit
Lifetime: 20,000 hours
Touchscreen: Analog resistive, 4-wire
Network: 1 Ethernet port, 10/100 BaseT, TCP/IP protocol, Full Duplex
USB: 2 Host USB 2.0 (480 Mb/sec) ports
Power supply: 24VDC ±10%, 0.5A
Mounting: Standalone panel mount with optional accessory kit; optional stand accessory
Rating: IP65 or NEMA 4 when properly panel-mounted in an IP65 or NEMA 4 rated enclosure
Shock resistance: 30 G shock per IEC 68-2-27
Vibration resistance: 2G from 10–2000 Hz, per IEC 68-2-6
Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: -10°C to 60°C (14°F to 140°F)
