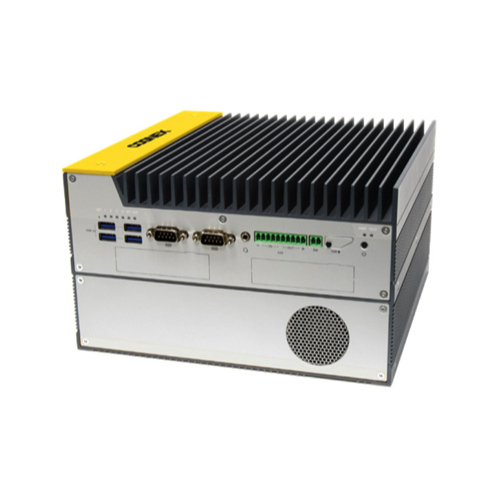

Cognex IPC5 ຄຸນສົມບັດການຄວບຄຸມວິໄສທັດ

Processor: Core i5-9500TE

Processor speed: 2.2 GHz

Processor cores: 6

Chipset: Intel C246

Integrated graphics: Intel UHD Graphics 630

Memory: 2 DDR4 SO-DIMM slots (16 GB)

Rear I/O:

Ethernet: 1 GbE LAN with Intel I219-LM controller; 2 GbE LAN with Intel I210-AT controller

USB: 2 USB 3.1 Gen 1

PoE GigE: 4 GbE PoE with Intel I210-AT controller (up to 15.4W per port)

Video: 3 display ports

Power: 5-Pin Terminal Block Power Input (9 ~ 48 V), Intelligent Ignition Sensing

I/O (via PCIe CC24 card): 24 precision I/O (8 in / 16 out), 4 non-isolated encoder inputs, 1 dedicated RJ45 Ethernet port for industrial communication protocols

Other 1: External fan connector, 3-pin CAN bus

Front I/O:

USB: 4 USB 3.1 Gen 1

Serial: 2 RS-232/422/485, isolated 8-bit digital I/O (4-in, 4-out), 2-pin remote power switch

Other 2: 2 optional 2.5-inch hot-swap drive bays; audio jack (Line-In; Mic-In); external mini-SIM slot; power button

Expansion and storage: 256 GB M.2 NVMe SSD; dual-slot PCIe expansion (2 PCIe x8)

Onboard connector: 1 ModBay for I/O expansion

Dimensions (W x H x D): 240 x 143 x 242 mm

Mounting option: Wall-mount

Operating temperature: -40°C ~ 70°C with 35W TDP processor

Storage temperature: -40°C ~ 85°C

Power adapter: 180W 24V 7.5A

Shock resistance: IEC 60068-2-27 and MIL-STD-810G

Vibration resistance: IEC 60068-2-64 and MIL-STD-810G

Certifications:FCC 47 CFR Part 15, Electromagnetic compatibility (2014/35/EU), Low voltage (2014/30/EU), Radio equipment (2014/53/EU) – wireless SKU only, EN 55032, EN 55035, RoHS 3 (2015/863/EU), WEEE Directive (2012/19/EU), Electrical, immunity per E-Mark 7637-2 & 16750-2, EN 50121
