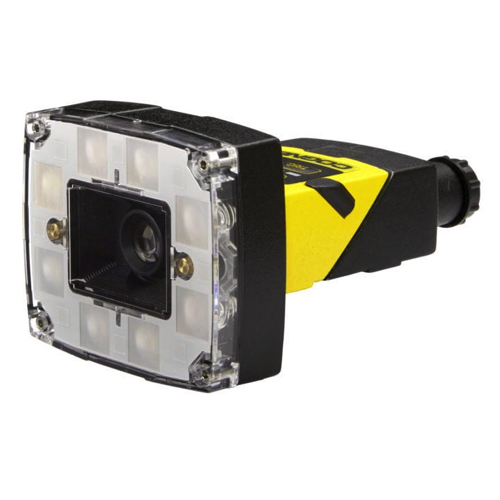

Cognex Insight 2000 ລະບົບວິໄສທັດ (640 x 480; S-mount / M12)

User Interface: In-Sight Explorer EasyBuilder, Cognex VisionView PC Software, and VisionView 900 HMI touchscreen panel

Color: Monochrome and Color

Lens: S-mount / M12

Lens Option: Standard: Autofocus (liquid lens) 6.2 mm or manual focus 8 mm / Optional: Manual focus 3.6 mm, 6 mm, 12 mm, 16 mm, 25 mm

Resolution: 640 x 480 (standard)

Lighting: Standard: Diffuse white LED ring light / Options: Red, blue and IR LED ring lights and lens filters, and polarized light cover

Shooting Speed: 75 fps

Data Output: Pass/Fail, Numeric 3

Connectivity: TCP/IP, UDP, FTP, Telnet, RS-232C

Power Supply: 24 VDC ±10%, 48 W (2.0 A) maximum when the illumination is on

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
