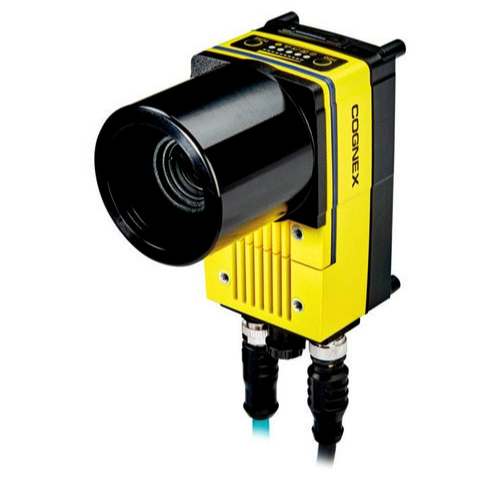

Cognex In-Sight 9902L ລະບົບວິໄສທັດ (32MP; Monochrome 1 inch)

Image Type: Monochrome 1 inch CMOS (7 μm² pixels)

Resolution: 32MP (2048 x 16384 software configurable) or 16MP ( 1024 x 16384 software configurable)

Acquisition Speed: 66 K lines per second (15us per line)

Storage capacity: 14.8 GB non-volatile flash (jobs), 8 GB Micro SD card (jobs, images, data)

Ram: 832 MB SDRAM

Lenses: C-mount

Lighting: N/A

Vision Tools: PatMax, PatMax RedLine, PowerGrid, Hotbars

I/O Network: (1) Gigabit Ethernet (10/100/1000 Mbps)

I/O built-in: (1) trigger, (1) input, (2) outputs, (2) encoder line inputs for quadrature support

Protocol General: CIO-MICRO, CIO-1400

Protocol Industrial: OPC UA, EtherNet/IP with AOP, PROFINET Class B, iQSS, Modbus TCP, SLMP/SLMP Scanner, IEEE 1588 (CIP Sync), Rockwell Add-On Profile, CC-Link IE Field Basic

Dimensions (L x W x H): 53.4 mm (2.10 in) x 60.5 mm (2.38 in) x 121.0 mm (4.77 in)

Weight: 400 g

Standard: IP67

Power Supply: 24 VDC
