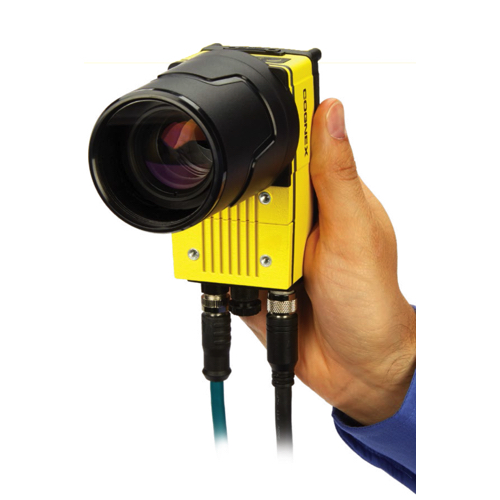

Cognex In-Sight 8505P ລະບົບວິໄສທັດ (Monochrome: 32 | color: 17; 2448 x 2048)

Image Type: Monochome and Color

Performance Factor: 4.6x

Storage Capacity: 14.8 GB

RAM: 512 MB

Sensor Type: CMOS, global shutter

Resolution: 2448 x 2048

HDR+ support: Yes

Acquisition Rate: Monochrome: 32 | color: 17

Lenses: C-mount

Indicator LEDs: Network status, 2 configurable LEDs

Built-in I/O: 1 dedicated trigger input, 2 high speed outputs (including strobe). Additional I/O available via CIO-MICRO2 external I/O module.

Power Source: Class 3 Power over Ethernet (PoE)

Industrial Connectors: M12: Power/Ethernet, M8: I/O

Industrial Protocols: OPC UA, Ethernet/IP with AOP, PROFINET Class B, iQSS, Modbus TCP, SLMP/SLMP Scanner

Dimensions (L x W x H): 35 mm x 32 mm x 75.55 mm

Weight: 192 g

Network Speed: 10/1000/1000 Mbps (Gigabit)

Rockwell Add-on Profile: Yes
