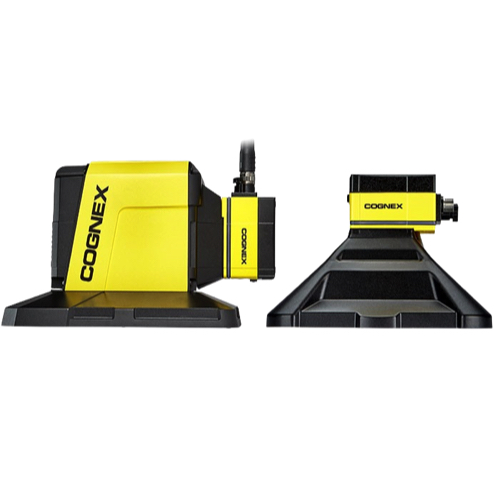

Cognex In-Sight 7905 - DPM ຕູ້ສະແກນຕິດຕັ້ງຖືກຕັ້ງ (35x29mm; 41mm)
Lighting Types: 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90°
Symbologies: 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, UPC/EAN, Code 128, Code 39Code, PDF417
Field of View: 35 x 29 mm
Working Distance: 41 mm
Depth of Field (WD Tolerance):
5 mil symbols: +/- 1.5 mm
15 mil symbols: +/- 2.5 mm
Minimum X-Dimension: 3.75 mil (0.095 mm)
Image Sensor: Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.8 mm x 6.6 mm (H x V); 3.45 μm square pixels
Lens Type: 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens)
Communications: Ethernet
Power Consumption: 24 VDC±10%, 1.5 A max (36 W peak)
Weight: 1814 g (4.00 lb)
Dimensions: 236 x 193 x 145 mm
Maximum Codes per Second:
1D: ~20 codes/second
2D: ~10 codes/second
Maximum Linear Line Speed: 1.4 m/sec (4.6 ft/sec)
Coplanarity Tolerance: +/- 2° of coplanar
