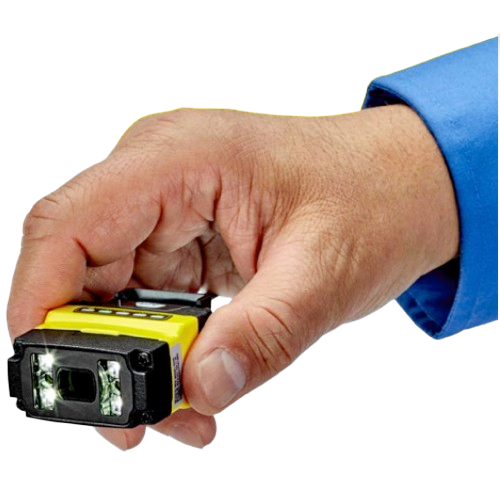

Cognex DMR-80X-126U ຕູ້ສະແກນຕິດຕັ້ງຖືກຕັ້ງ (1440 x 1080 pixels, 1.6 MP, USB-C)
Resolution: 1.6 MP
Power & Communications: USB-C
Light: White Standard
Lens: 6.2 mm HSLL
Cover: Clear
Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid
Image Sensor: 1/3 inch CMOS
Image Sensor Properties: Diagonal 6.21 mm, 3.45 μm square pixels
Resolution: 1440 x 1080 pixels (1.6 MP)
Weight:
6.2 mm assembly: 64 g
16 mm assembly: 97 g
Power:
USB powered: USB BC 1.2 port, USB 3.0 port with 4.5 W or higher, USB-C with USB-PD (5 V/3 A)
External power supply: +5 – +24 V DC. Supplied by
limited-energy circuit according to IEC/ UL/ CSA 61010-1 *
Power comsumption:
Average: 3.3 W
Maximum: 4.2 W
Operating Temperature: 0-40° C (32–104° F)
Storage Temperature: -10–60° C (14–140° F)
Humidity: <95% non-condensing
Environmental:
DataMan 80: IP67+B26 *
DataMan 80 with Sound Amplifier: IP44 Altitude: 2000 m, indoor use only, pollution degree II
Shock: IEC 60068-2-27 - 500 shocks in each polarity of each (X, Y, and Z) axis, 3000 shocks total, semi-sinusoidal,11 g, 10 ms
Shock (Shipping & Storage): ISTA-1A Standardized Testing - Packaged Products 150 lb or less
Vibration IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10Gs (10 to 500 Hz at 100m/s2/15 mm)
Vibration (Shipping & Storage) FedEx Vibration Testing for packaged products 150 lbs or less
Codes:
1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, Postal Codes, UPC/EAN/JAN, MSI
2D barcodes: Data Matrix (IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200), QR Code, microQR, PDF 417, AztecCode, DotCode, MaxiCode
