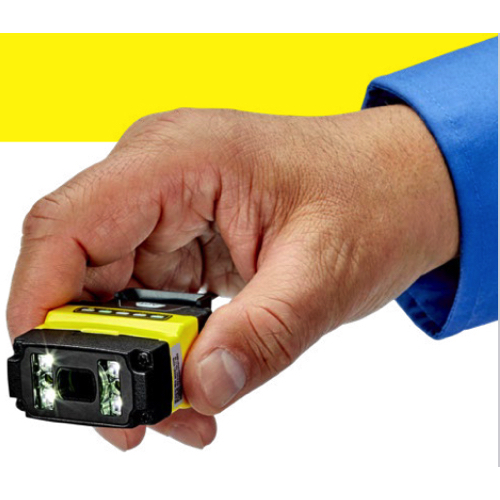

Cognex DMR-80X-112E ເຄື່ອງສະແກນຕິດຢູ່ຄົງທີ່ (1440 x 1080 pixels; 6 W)

Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid

Image Sensor: 1/3 inch CMOS

Image Sensor Properties: Diagonal 6.21 mm, 3.45 μm square pixels

Độ phân giải: 1440 x 1080 pixels (1.6 MP)

Weight: 6.2 mm assembly: 99 g | 16 mm assembly: 132 g

Power: PoE Class 2

Power comsumption: Average: 4.3 W | Maximum: 6 W

Light: Red standard

Lens: 6.2 mm HSLL clear

Operating Temperature: 0-40° C (32–104° F)

Storage Temperature: -10–60° C (14–140° F)

Humidity: <95% non-condensing

Environment:

DataMan 80: IP67+B2

DataMan 80 with Sound Amplifier: IP44 Altitude: 2000 m, indoor use only, pollution degree II

Shock: IEC 60068-2-27 - 500 shocks in each polarity of each (X, Y, and Z) axis, 3000 shocks total, semi-sinusoidal,11 g, 10 ms

Shock (Shipping and storage): ISTA-1A Standardized Testing - Packaged Products 150 lb or less

Vibration: IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10Gs (10 to 500 Hz at 100m/s2/15 mm)

Vibration (shipping and storage): FedEx Vibration Testing for packaged products 150 lbs or less

Code: 1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, Postal Codes, UPC/EAN/JAN, MSI 2D barcodes: Data Matrix (IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200), QR Code, microQR, PDF 417, AztecCode, DotCode, MaxiCode

High speed output 0: I MAX : 50 mA ; V OL: ≤ ±3 V @ 50 mA

Input 0: VIL: :5 ± 6 V; VIH: ±12V; ITYP : 4.2 mA @ 24 V
