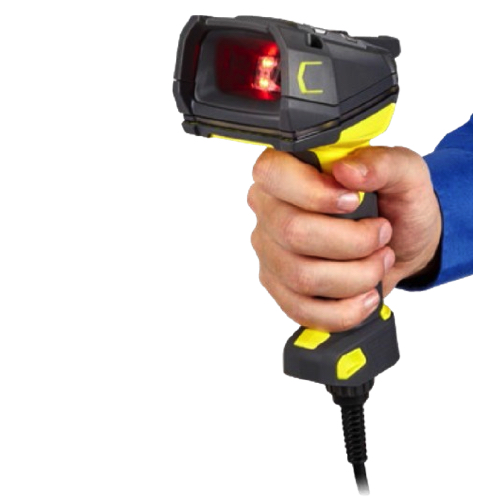

Cognex Dataman 8700LX ຕູ້ສະແກນບາໂຄດ (1DMax, 2DMax, Hotbars, PowerGrid; 1.6MP)
Lens: 8 mm fixed lens
Lighting: Red direct
Aimer: Dual off-axis green LED aimers
Minimum 1D/2D code size: 4 mil/5 mil
Dimensions:
Wireless: 211.4 mm (H) x 113.1 mm (L)
Corded: 223.4 mm (H) x 113.1 mm (L)
Weight:
Wireless: 479 g (battery included)
Corded: 395 g (+ approx. 130 g for cables)
Algorithms: 1DMax, 2DMax, Hotbars, PowerGrid
Resolution: 1.6MP
Status Outputs: OLED display, LED ring light, beeper, vibration
Communications
Serial: RS-232 and USB
Ethernet: TCP/IP, FTP, industrial protocols: EtherNet/IP, PROFINET, MC protocol, Modbus TCP
Intelligent base station: RS-232, USB, Ethernet, industrial protocols
Bluetooth connectivity: smartphone, intelligent base station, Bluetooth enabled tablet or PC
Wireless infrastructure mode connectivity: PC through Wi-Fi router
Symbologies:
1D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, POSTNET, PLANET Code, IMB, Postal
2D: Data Matrix, QR, MicroQR, PDF417, MaxiCode, Aztec
Operating Temperature: 0°C–40°C (32°F–104°F)
Storage Temperature: -40°C–60°C (-40°F–140°F)
Maximum Humidity: 95% (non-condensing)
Power Supply Requirements
DataMan 8700 with serial/USB: 5.5 V DC, 6.0 W maximum LPS or NEC Class 2 power supply
DataMan 8700 with Ethernet: PoE Class 2 power supply
DataMan 8700 with Bluetooth: 3.7 V, 5000 mAh Li-ion battery
DataMan Intelligent Base Station: 5.5 V DC, 6 W maximum LPS or NEC Class 2 power supply or PoE Class 2 power supply
Wireless Unit Scans per Full Charge: 125,000+
Protection Handheld reader: IP67; Base station: IP65
Drop Test: Multiple drops from 2.5 meters
Tumble Test: 5,000 tumbles from 1 meter
Operating System: Windows 7 and Windows 10
