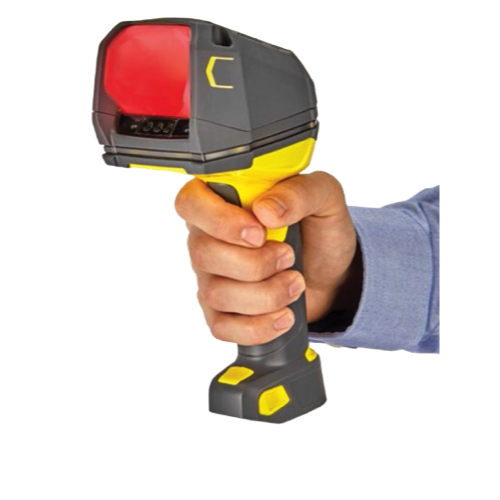

Cognex Dataman 8700DX ຕູ້ສະແກນບາໂຄດ (1DMax, 2DMax, Hotbars, PowerGrid; 1.6MP)
Algorithms: 1DMax, 2DMax, Hotbars, PowerGrid
Resolution: 1.6MP
Lens: 8mm lens with liquid lens
Aimer: On-axis green LED aimer
Status Outputs: OLED display, LED ring light, beeper, vibration
Communications
Serial: RS-232 and USB
Ethernet: TCP/IP, FTP, industrial protocols: EtherNet/IP, PROFINET, MC protocol, Modbus TCP
Intelligent base station: RS-232, USB, Ethernet, industrial protocols
Bluetooth communicates to intelligent Bluetooth base station or directly to PC/phone/tablet
Wi-Fi (2.4GHz & 5GHz) communicates to intelligent Wi-Fi base station or infrastructure mode to a wireless router
Lighting: Diffuse, polarized, direct
Symbologies:
1D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, POSTNET, PLANET Code, IMB, Postal
2D: Data Matrix, QR, MicroQR, PDF417, MaxiCode, Aztec
Dimensions:
Wireless: 221mm (H) x 112.5mm (L)
Corded: 241mm (H) x 112.5mm (L)
Weight:
Wireless weight: 530 g (battery included)
Corded weight: 450 g (+ approx. 130 g for cables)
Operating Temperature: 0°C–40°C (32°F–104°F)
Storage Temperature: -40°C–60°C (-40°F–140°F)
Maximum Humidity: 95% (non-condensing)
Power Supply Requirements:
DataMan 8700 with serial/USB: 5.5 V DC, 6.0 W maximum LPS or NEC Class 2 power supply
DataMan 8700 with Ethernet: PoE Class 2 power supply
DataMan 8700 with Bluetooth: 3.7 V, 5000 mAh Li-ion battery
DataMan Intelligent Base Station: 5.5 V DC, 6 W maximum LPS or NEC Class 2 power supply or PoE Class 2 power supply
Wireless Unit Scans per Full Charge: 125,000+
Protection: Handheld reader: IP67; Base station: IP65
Drop Test: Multiple drops from 2.5 meters
Environmental Compliant with latest EU RoHS and China RoHS
Regulatory
EU: CE EMC & RED
USA/Canada: cTÜVus IEC 61010-1, part 15B, ICES 03
Korea: KCC
Data Validation: US DoD UID guidelines, GS-1, ISO15434 and ISO15418
Operating System: Windows 7 and Windows 10
