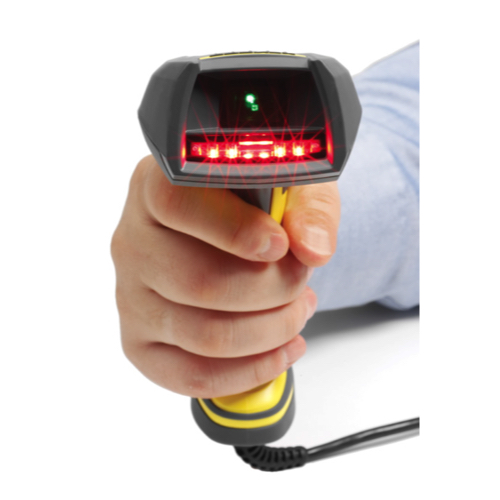

Cognex Dataman 8050 ຕູ້ສະແກນບາໂຄດ (1D, 2D; 752 x 480 Global shutter)
Dimensions: 210 mm x 115 mm x 85 mm
Weight: Corded: 0.615 lbs./279 g
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Maximum Humidity: 95% (non-condensing)
Material: Polycarbonate housing with overmold
Imager: 752 x 480 global shutter sensor
Aiming Centralized green LED aimer
Status Outputs LED and beeper
Communications
Serial module: RS-232, USB
Ethernet module (DataMan 8050E): TCP/IP, FTP, industrial protocols:
Ethernet/IP, PROFINET, MC Protocol, ModBus TCP
Symbologies
1D: UPC/EAN/JAN; Codabar, Interleaved 2 of 5, Code 39, Code 128,
Code 93, GS1 Databar, PDF417, Micro PDF417, Postal Code
2D: Data Matrix, QR, MicroQR, Aztec, MaxiCode
Lighting Integrated LED with near/far optics
Power Supply
Requirements 5 V–6 V DC, 2.5 W LPS or NEC Class 2 power supply
Protection IP-65
Environmental Compliant with RoHS directive 2002/98/EEC
Regulatory Electrical CE, CSA, UL, 60950
EMI/RFI FCC Part 15, CE (EMC and R&TTE Directives),
ICES-003, RSS-210 Issue 8, KCC
ESD Standards
Compliance IEC 61340-5-1:2016 for select models only
Data Validation US DoD UID guidelines, GS-1, ISO15434 and ISO15418
Operating System Microsoft® Windows® XP, Windows 7 and Windows 8
