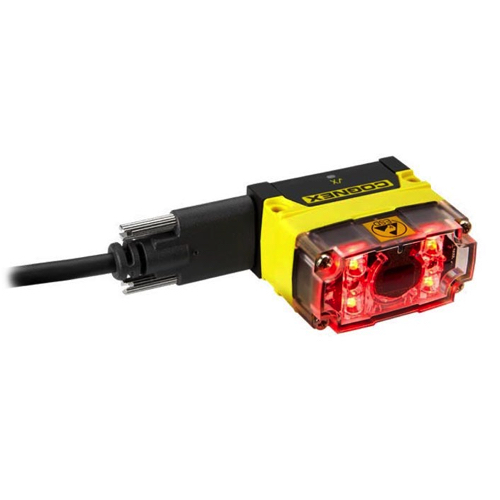

Cognex DataMan 72L ຕູ້ສະແກນຕິດຕັ້ງຖືກຕັ້ງ (1DMax HotBars)
Dimensions: 42.4 mm x 22.2 mm x 38.7 mm
Weight: 42 g without cable
Connectivity: Integrated USB-C (RS-232 with accessory cable) or Industrial Ethernet protocols with communication module
Decoding Capabilities: 1DMax HotBars
Power: 5 VDC–24 VDC or USB Bus powered, 2.5W
Image Sensor: 1/3 inch CMOS 1280 x 960 global shutter
Acquisition: 60 fps
Lens: 6.2mm f 7.0, 3-position lens with standard or long-range focus setting or 16mm f 7.0 manual focus lens
Lighting: 4 independently controlled red LEDs (6.2mm lens) or 4 high-power LEDs (16mm lens only)
Discrete I/O: USB: N/A | Optional serial accessory cable allows 1IN (trigger only) / 1OUT
Operating Temperature: 0 °C–40 °C
Storage Temperature: 10 °C–60 °C
Humidity: <95%, non-condensing
Sealing: IP65
