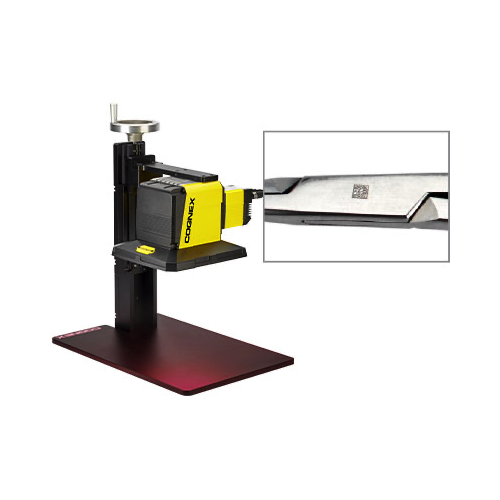

Cognex DataMan 475VS-DPM ການກວດສອບບາໂຄດ (35 x 29 mm; 3.75 mil)
Light Types: 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2-quadrant, 4-quadrant 660 nm, 90°
Symbologies :
1D: UPC/EAN, Code 128, Code 39
2D: Data Matrix (ECC 200), QR Code, Micro QR Code
Field of View: 35 x 29 mm
Working Distance: 41 mm with side illumination attachment 71 mm without side illumination attachment
Depth of Field (WD Tolerance):
5 mil codes: ±1.5 mm
15 mil codes: ±2.5 mm
Minimum X-Dimension: 3.75 mil (0.095 mm)
Image Sensor:
Sony IMX264LLR
5 MP (2448 x 2048 pixels)
2/3 inch CMOS, global shutter
8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels
Lens Type: 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (user cannot change lens)
Communication: Ethernet
Power: 24 VDC±10%, 1.5 A max (36 W peak)
Weight: 1002.7 g
Dimensions: 286 x 145 x 193 mm
Protection Standard: IP65
Certifications: CE, TUV, FCC, KC
Industry Standard Compliance: ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2
Application Standards: GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards
Scan Speed: 2D: 4 seconds/code
Maximum Linear Speed: 4.6 ft/second (1.4 m/second)
Coplanarity Tolerance: ±2° coplanarity
