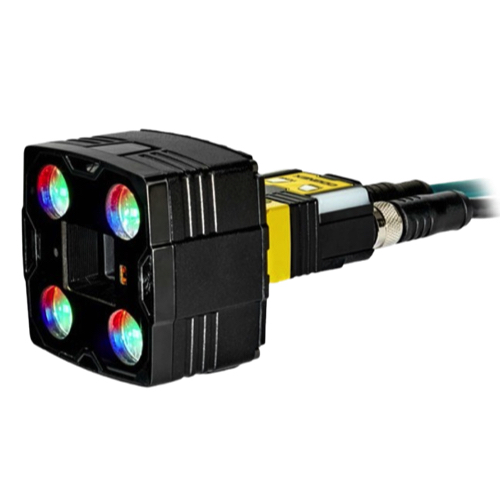

Cognex Dataman 282 ຕວດການບາໂຄດ (1920 x 1080 pixels; 1/2.8 inch CMOS)
Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid
Image sensor: 1/2.8 inch CMOS
Image sensor propertíes: Diagonal 6.17 mm, 2.8 μm square pixels
Resolution: 1920 x 1080 pixels
Electronic Shutter Speed: Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination)
Acquisition: Up to 45 Hz
Lenses: 8 mm, 12 mm, or 16 mm High Speed Liquid Lens
Trigger and Tune Buttons: Yes, with Quick Setup Intelligent Tuning
Aimer: Laser cross pattern (class 2)
Discrete Inputs: 2 opto-isolated, 2 configurable
Discrete Outputs: 2 opto-isolated, 2 configurable
Other I/O points: 2 user configurable as inputs or outputs
Status Outputs: 5 status LEDs, audible beeper, 2 visual indicator lights, 4 HPIT light color options
Lighting: HPIT: 4 multi-color LED lights (red, green, blue, and white) Optional bandpass filters. Front cover options: clear, diffused, polarized and dome
Connection: Serial and 1 GB/second Ethernet interface, USB-C, and keyboard capability
Protocols: RS-232, TCP/IP, PROFINET (class B), EtherNet/IP™, SLMP, CC-Link, Modbus TCP, NTP, SFTP, FTP, MRS, Java Scripting enabled for custom protocols
Power: 24V +/- 10%
Power Consumption: ≤7.5W
Material: Zinc and aluminum alloy
Weight: 290 g (Right-angle configuration adds 50 g)
Operating Temperature: 0–40° C (32–104° F)
Storage Temperature: -10–60° C (14–140° F)
Humidity: <95% non-condensing
Standard: IP67
