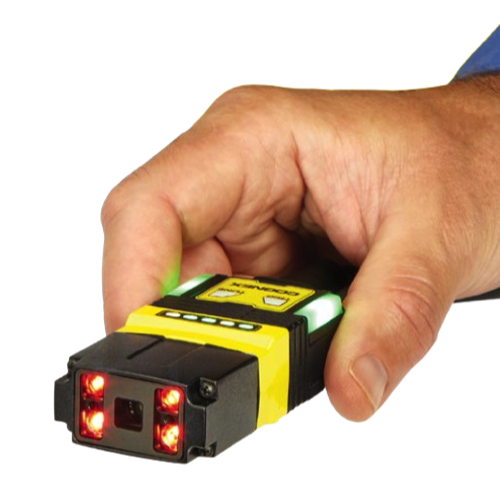

Cognex Dataman 280 ຕວດການບາໂຄດ (1440 x 1080 pixels)
Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid
Image Sensor: 1/3" CMOS
Image Sensor Properties: Diagonal 4.81 mm, 3.45 μm square pixels
Image Resolution: 1440 x 1080 pixels
Electronic Shutter Speed:
Min. exposure: 29 μs
Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination)
Acquisition: Up to 45 Hz
Lens Options: 6.2 mm (3 pos or HSLL), 16 mm (manual or HSLL), 6.2 mm UV, 6.2 mm and 16 mm IR, C-Mount accessory
Trigger and Tune Buttons: Yes, with Quick Setup Intelligent Tuning
Aimer: 2 green aimer LEDs
Discrete Inputs: 2 opto-isolated, 2 configurable
Discrete Outputs: 2 opto-isolated, 2 configurable
Other I/O Points: 2 user configurable as inputs or outputs
Status Outputs: 5 status LEDs, audible beeper, 2 visual indicator lights
Lighting: Modular/field configurable lighting: 4 independently controlled high powered LEDs (red, white, blue, IR, UV),
band pass filters and polarization filters available
Communications: Serial and Ethernet interface
Protocols: RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link
Java Scripting enabled for custom protocols
Power: 24V +/- 10% PoE (Power over Ethernet) Class 3
Power Consumption: ≤7.5W
Material: Zinc alloy/aluminum
Weight: 6.2 mm: 141 g; 16 mm: 169 g
Right angle configuration adds 50 g
Dimensions
Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm
Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm
Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm
Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm
Operating Temperature: 0–40 °C (32–104°F)
Storage Temperature: -10–60 °C (14–140°F)
Operating and Storage Humidity: <95% non-condensing
Protection: IP67
