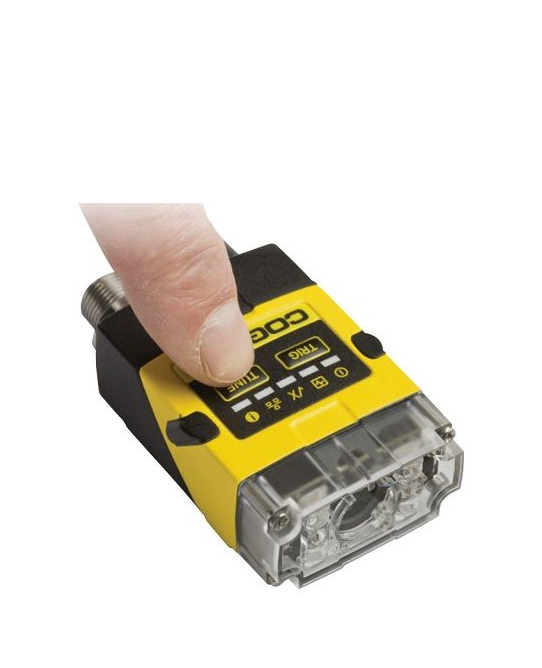

Cognex Dataman 150Q ຕວດການບາໂຄດ (752 x 480 Global shutter; 1DMax, 2DMax)
Algorithms: 1DMax, 2DMax
Resolution: 752 x 480 Global shutter
Image Sensor: 1/3 inch
Acquisition: 60 fps
Maximum Decode Rate: 45/sec
Lens Options: 6.2 mm (3 position or liquid lens, 50..250 mm), 16 mm (manual focus or liquid lens, 80 mm .. 1 m)
Trigger and Tune Buttons: Yes. Quick Setup Intelligent Tuning
Aimer: 2 Green Aimer LEDs
Discrete Inputs: 2 opto-isolated
Discrete Outputs: 2 opto-isolated
Status Outputs: 5 Status LEDs and Beeper
Lighting: Modular/Field Configurable Lighting: Four Independently Controlled, High-Power LEDs (Red, White, Blue, IR); Band-Pass Filters & Polarizing Filter Available
Power Supply: 5–26 VDC, 2.5 W (USB bus power option); DB-15 pig tail cable, pin compatible with DM100
Power Consumption: <2.5 W (USB)
Connectivity: RS-232 and USB Interface
Material: Aluminum
Weight: 128 g
Dimensions (L x W x H): Straight: 42.5 mm x 22 mm x 55(63) mm / Right-Angle: 42.5 mm x 28(36) mm x 49.6 mm
Operating Temperature: 0 °C – 40 °C
Storage Temperature: -10 °C – 60 °C
Humidity: < 95% non-condensing
Standard: IP65
RoHS Certified: Yes
Approvals (CE, UL, FCC): USA FCC Part 15, Class A; Canada ICES-003; European Community EN55022:2006 +A1:2007, Class A; EN55024:1998 +A1:2001 +A2:2003; EN60950
