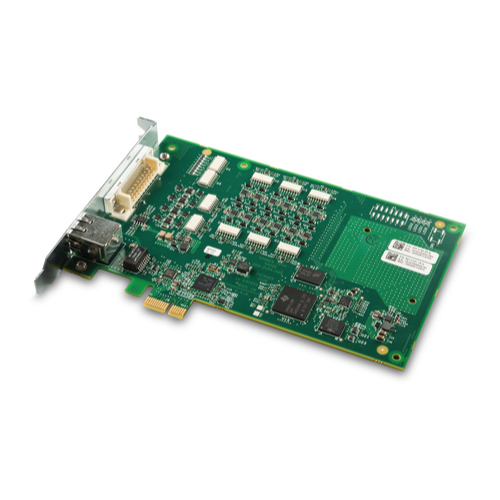

Cognex CIO-CC24-200 ບັດການສື່ສານ (PCI Express, x1 Gen2)

Bus Interface: PCI Express, x1 Gen2

Bus Interface Options: Any PCIe slot

Inputs: 8 optically isolated discrete inputs

Outputs: 16 optically isolated discrete outputs

Encoder Inputs: 4 non-isolated encoder inputs

I-ENET Port: 1 RJ-45 Ethernet port, 10/100 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Dedicated port for Ethernet-based industrial protocol communications.

Dimensions: 168.0 mm (6.6 in) x 110.0 mm

Power Requirements: 170 mA from PCIe bus +3.3VDC.240 mA from PCIe bus +12VDC

Power Consumption: 3.5 W (maximum)

Power Dissipation: 9 W (maximum)

Operating Temperature: 0°C to 50°C

Storage Temperature: -40°C to 65°C

Humidity: 10% - 90%, non-condensing (Operating and Storage)

Regulatory Compliance: CE, FCC, RoHS
