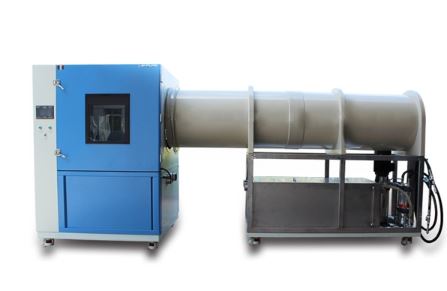

Symor TRX6 Rain Test chamber (IPX6)

Interior Dimension W*D*H (mm): 800*800*800

Complied Standard: IEC60529

Diameter of Turntable (mm): 700

Water Tank Dimension W*D*H: 600*700*1100mm

Nozzle Interior Diameter: IPX6:12.5mm

Water Flow Rate: IPX6:100±5 L/min

Main Waterstream@center position:

IPX6: 2.5m distance from nozzle:circle with appx. 120mm diameter

Distance between Nozzle and Product Enclosure: 2.5-3 m

Testing Duration: At least 3 min

Spray Time on product Enclosure (per square meter): Appx. 1min

Power Supply: 220V 50HZ
