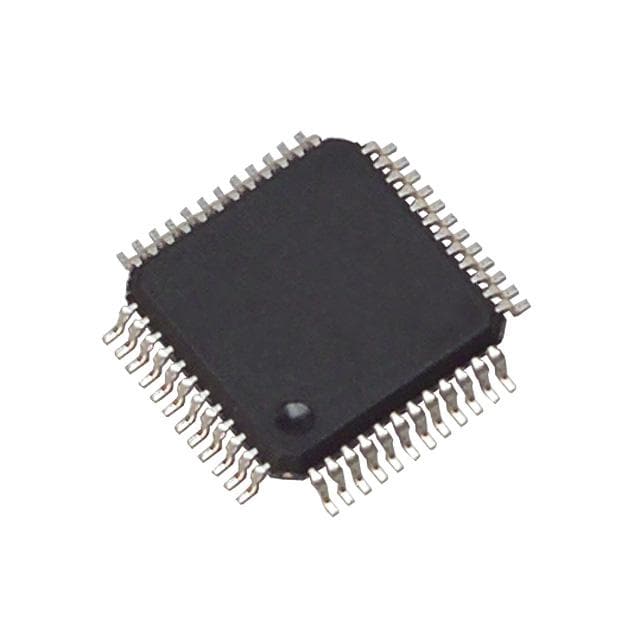

Cirrus Logic CS3308-CQZ ການຄວບຄຸມລະດັບສຽງດິຈິຕອນສະເຕຣີໂອ 8-Channel

Gain: 22 dB

Width: 7.1 mm

Height: 1.45 mm

Length: 7.1 mm

Input Type: Single

Unit Weight: 181.700 mg

Output Power: 362 mW

Mounting Style: SMD/SMT

THD plus Noise: 112 dB

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Output Signal Type: Analog

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 3.1 V

Audio - Load Impedance: 2 kOhms

Operating Supply Current: 36 mA

Operating Supply Voltage: 3.5 V/5.25 V

Vos - Input Offset Voltage: 750 mV

GBP - Gain Bandwidth Product: 5 MHz

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C

PSRR - Power Supply Rejection Ratio: 80 dB
