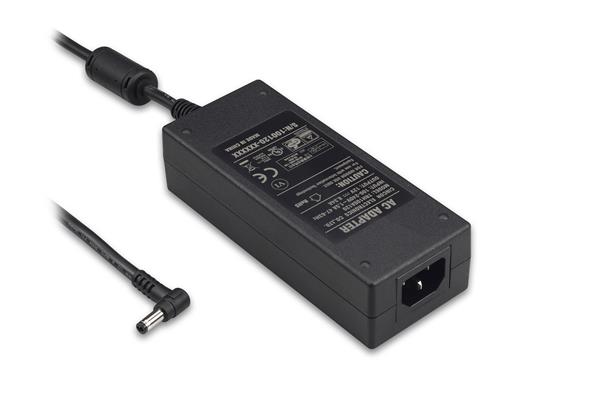

Cincon TRH100A480-21E13-Level-VI ເຄື່ອງປະຕິບັດກະບອງ AC ເປັນຮູບແບບສະຫຼຸບກັບ PFC, ລະດັບ VI, ເປັນເຄື່ອງປະຕິບັດກະບອງ, 100 ວັດ, ອິນພຸດ 90-264VAC, ອອກ 48VDC, 5.5x2.5x9.5mm, ມຸມຂວາ, ສາຍ DC 1800mm ມີເຄື່ອງປົກກະຕິ Ferrite Core

Width: 58 mm

Height: 37 mm

Length: 142 mm

Region: Universal

Industry: Industrial

Approvals: CE, cUL, EN60950-1, IEC60950-1, UL60950-1

Compliance: PSE

Efficiency: Level VI

Unit Weight: 485 g

Output Power: 100 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Cooling Method: Convection

Mounting Style: Desktop

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 9.5 mm

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

DC Output Connector: 2.5 mm Barrel Plug, Right Angle (2.5x5.5)

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Connector A Polarity: Center Positive

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 2.1 A

Output Voltage-Channel 1: 48 VDC

AC Plug included/required: Required

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
