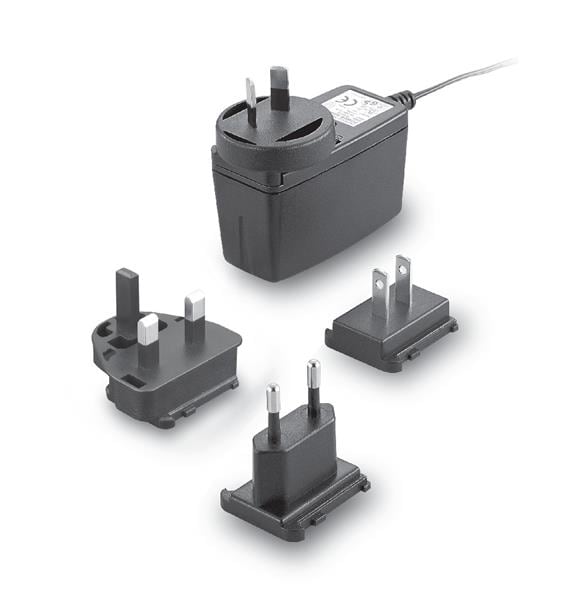

Cincon TRG10R050-01E03-Level-VI ອາເດັດເປັນປລັກສະຫຼຸບປ່ຽນໄດ້, ລະດັບ VI, ຕິດຜົນກັບຜນວັນ, 10 ວັດ, ອິນພຸດ 90-264VAC, ອອກ 5VDC, 5.5x2.1x12mm, ມຸມຂວາ, ສາຍ DC 1800mm

Width: 46.3 mm

Height: 35.6 mm

Length: 72.6 mm

Region: Australia, Europe, North America, United Kingdom

Industry: Industrial

Approvals: EN/IEC 60950-1, UL 60950-1

Compliance: EN/IEC 60950-1, UL 60950-1

Efficiency: Level VI

Output Power: 10 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Cooling Method: Convection

Mounting Style: Wall Mount

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 12 mm

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug, Right Angle (2.1x5.5)

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Connector A Polarity: Center Positive

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 1.6 A

Output Voltage-Channel 1: 5 VDC

AC Plug included/required: Included

Operating Temperature Range: - 20 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
