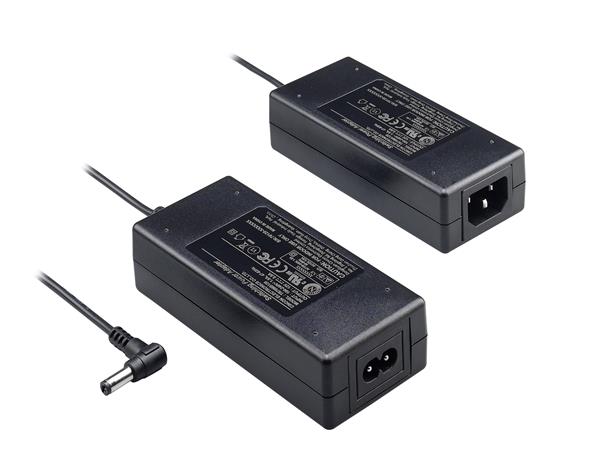

Cincon TR70MA240-01E03 VI ອາເດັດເຕັບ AC ເບີ່ງເຕັບ 70W 24V 3A R/A 2.1mm ລະດັບ I

Width: 52 mm

Height: 31 mm

Length: 120 mm

Region: Universal

Industry: Medical

Approvals: IEC/EN60335-1

Compliance: IEC/EN60335-1

Efficiency: Level VI

Unit Weight: 300 g

Output Power: 70 W

AC Inlet Type: C14

Input Voltage: 80 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Center Pin Length: 12 mm

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug, Right Angle (2.1x5.5)

Connector A Polarity: Center Positive

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 24 VDC

AC Plug included/required: Required

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
