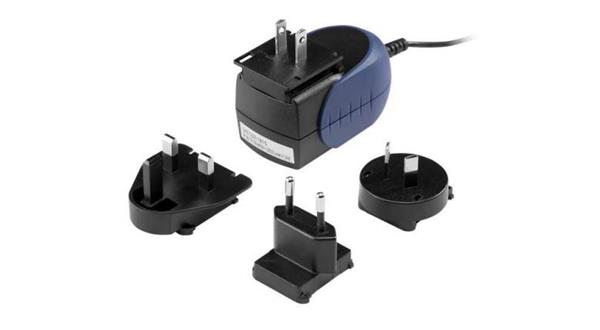

Cincon TR15RAM050-133E03-Level-V ອາເດັດເປີດປະຕູປ່ຽນໄດ້, ລະດັບ V, ຕິດຜນວຽກຝາຜົມ, ແພດທະບານ, 15 ວັດ, ອິນພຸດ 90-264VAC, ອອກ 5VDC, 2A, ສາຍ DC 1800mm, ກ້ອງສີເທົາ

Width: 47.9 mm

Height: 43.3 mm

Length: 80.6 mm

Region: Australia, Europe, North America, United Kingdom

Industry: Industrial

Approvals: EN/IEC 60950-1, UL 60950-1

Compliance: EN/IEC 60950-1, UL 60950-1

Efficiency: Level V

Unit Weight: 150 g

Output Power: 15 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Cooling Method: Convection

Mounting Style: Wall Mount

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 12 mm

Isolation Voltage: 5.66 kVDC

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 VDC

AC Plug included/required: Included

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
