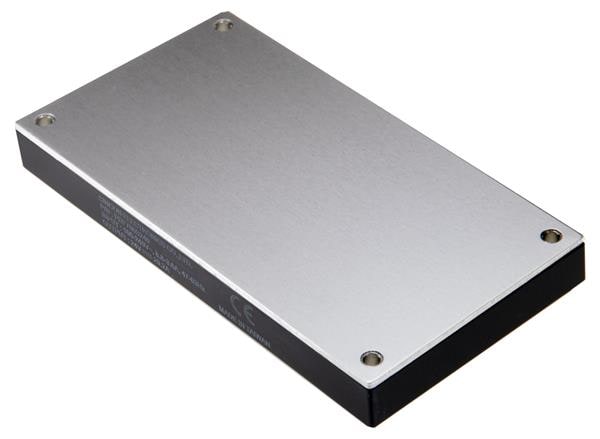

Cincon PDF700S560 ເຊັດຊິ້ງ ພາສະ 700W 90 264VACin 56Vout 12.5A Full Brick

Width: 61 mm

Height: 12.7 mm

Length: 116.8 mm

Industry: Industrial

Approvals: EN/IEC/UL 62368-1

Dimensions: 116.8 mm x 61 mm x 12.7 mm

Efficiency: 91.5 %

Output Power: 700 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 4 kV

Power - Forced Air: 8 kV

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 56 VDC

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
