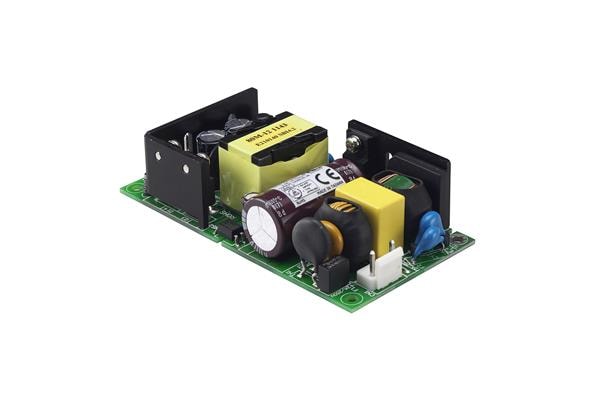

Cincon CFM80S240 ໂມດູນສະຫນອງພະລັງງານປ່ຽນແປງ AC-DC, 80 ວັດ, ກະຕຸ້ນເປີດ, ອິນພຸດ 90-264VAC, ອອດພຸດ 24VDC

Width: 50.8 mm (2 in)

Height: 27.1 mm (1.067 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Efficiency: 90 %

Unit Weight: 155 g

Output Power: 80 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.35 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 20 C to + 80 C

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C
