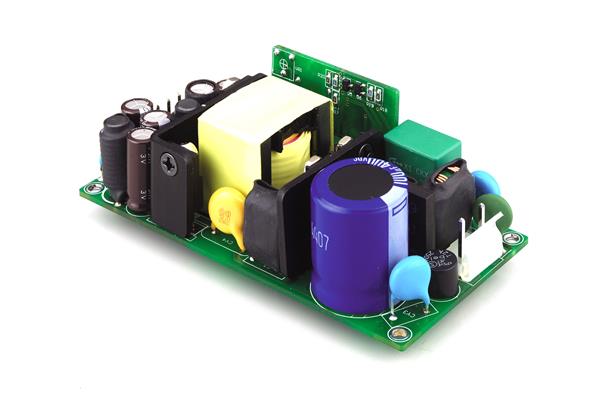

Cincon CFM60T-01 ມູດູນເຊັດສະຫຼຸບ AC-DC, 60 ວັດ, ອອກສາມທາງ, ອິນພຸດ 90-264VAC, ອອກ 5VDC(V1), 12VDC(V2), -12VDC(V3)

Width: 50.8 mm (2 in)

Height: 32 mm (1.26 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Efficiency: 83 %

Unit Weight: 170 g

Output Power: 62 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4.24 kVDC

Number of Outputs: 3 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5 A

Output Current-Channel 2: 3.7 A

Output Current-Channel 3: 650 mA

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 12 VDC

Operating Temperature Range: 0 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
