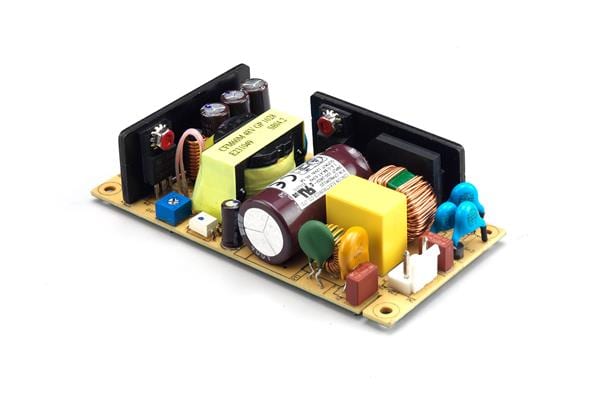

Cincon CFM60M120 ແມ່ພະລັງງານສະຫນັບສະຫນູນ AC-DC ແບບໂມດູນ, ທາງການແພດ, 60 ວັດ, ກະຕ່າງເປີດ, ອິນພຸດ 90-264VAC, ອອດພຸດ 12VDC

Width: 50.8 mm

Height: 27.94 mm

Length: 101.6 mm

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Efficiency: 87 %

Unit Weight: 125 g

Output Power: 60 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 5.66 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
