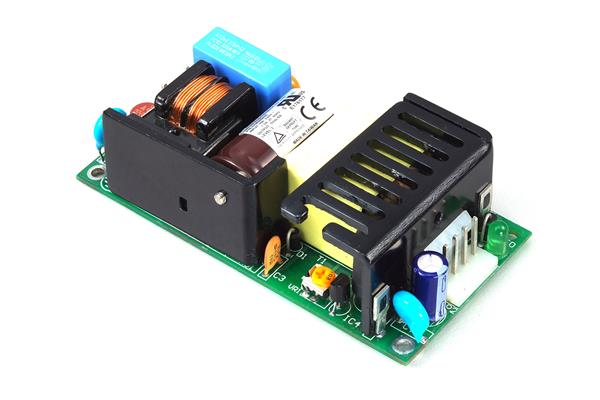

Cincon CFM40S150 ແປງສະໜອງພະລັງງານ AC-DC ແບບສະມູນ, 40 ວັດ, ກະຈົບເປີດ, ອິນພຸດ 90-264VAC, ອອດພຸດ 15VDC

Width: 50.8 mm (2 in)

Height: 30.48 mm (1.2 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Efficiency: 85 %

Unit Weight: 170 g

Output Power: 40 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.67 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
